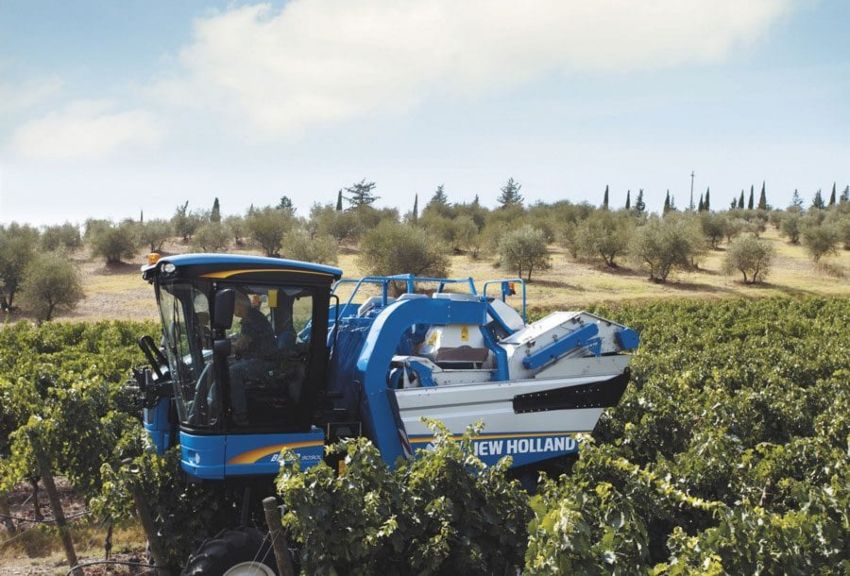

Available in 2 Hopper configurations, the 9090X Vine Harvester perfectly matches your vineyard requirements. For non-stop harvesting, choose the innovative 2 bin configuration. This design provides extra efficiency during harvest and improved visibility during unloading.
MAKE:Braud
Horsepower:175 hp (129 kW) (CV)
Available in 2 Hopper configurations, the 9090X Vine Harvester perfectly matches your vineyard requirements. For non-stop harvesting, choose the innovative 2 bin configuration. This design provides extra efficiency during harvest and improved visibility during unloading. Refined and developed, these proven BRAUD systems are now matched to a larger conveyor system, high-performance cleaning fans and the best destemmer system. The result is improved cleaning and performance. BRAUD – the revolution continues
Vineyard type Thick and extra-thick vegetation
Engine 6-cylinder
Horsepower 175 hp (129 kW) (CV)
Hoppers 845 gal (3200)
|
BRAUD 9090X – 2 Hoppers |
|
| VINEYARD TYPE | |
| Vineyard type | Thick and extra-thick vegetation |
| Multifunctional grape harvester with Quick uncoupling | Standard |
| ENGINE | |
| Type | FPT Industrial |
| Power ECE R120/ISO 14396 – hp kW(CV) | 175 (129) |
| Cylinders / Aspiration | 6 / Turbo with intercooler |
| Compliance with emission level | Tier 3 / Stage 3A |
| TRACTOR BASE UNIT | |
| Fuel tank capacity gal. (L) | 66 (250) |
| Hydrostatic transmission with anti-skid system | Standard |
| Maximum steering angle (degrees) | 90 |
| Soft Shift | Standard |
| Front wheel torque limiter | Standard |
| Maximum slope (without destemmer) (%) | 40 |
| Maximum slope (with destemmer) (%) | 35 |
| Maximum lateral slope (%) | 30 |
| IMS – Intelligent management system | Standard |
| CDHA – Automatic height and lateral slope correction | Standard |
| Cruise control | Standard |
| Front tool carrier | Optional |
| HARVESTING HEAD | |
| Number of SDC shakers (std.) | 24 |
| Flexible rear shaker fixation | Standard |
| Quick coupling of the picking head | Standard |
| Hydrolic horizontal shaking rods spacing / quick shaker engagement | Standard/Optional |
| Electrical horizontal shaking rods spacing and quick shaker engagement | – |
| Mechanical horizontal shaking rods spacing and fixed shaker | – |
| Sealed length of collection baskets in. (mm) | 98 (2500) |
| Number of collection baskets | 2 x 68 |
| Minimum harvesting height in. (mm) | 6 (150) |
| Upper cleaning fans | Standard |
| Lower cleaning fans | Standard |
| Stainless steel hoppers gal. (L) | 845 (3200) |
| Destemmer (with 2600/3200 litre hoppers) | Optional |
| Opti Grape™ (without lower cleaning fan configuration) | – |
| CAB | |
| Adjustable armrest & Multifunctional joystick | Standard |
| Customizable spare buttons | – |
| IntelliView™ III Touch screen Monitor + Color monitor for cameras | Standard |
| Cameras (color) | 2 STD /+1 OPT |
| Steering column and adjustable seat | Standard |
| Mirrors with electrical adjustment | Standard |
| Right mirrors retractable | Standard |
| Parking brake | Standard |
| DIMENSIONS | |
| Max. height with cab, harvesting head on the ground ft. in. (m) | 11′ 11″ (3.63) |
| Length with cab ft. in. (m) | 19′ 2″ (5.84) |
| Maximum width of base unit ft. in. (m) | 10′ 3″ (3.13) |
| Maximum width with harvesting head fitted ft. in. (m) | 10′ 7″ (3.22) |
| Ground Clearance | 6′ 7″ to 9′ 2″ (2.00 to 2.80) |
| Maximum hopper tipping height ft. in. (m) | 10′ 11″ (3.07) |
| Side conveyor width ft. in. (mm) | – |
| Side conveyor length (2 options) ft. in. (m) | – |
| Maximum unloading height for side conveyor ft. in. (m) | – |
